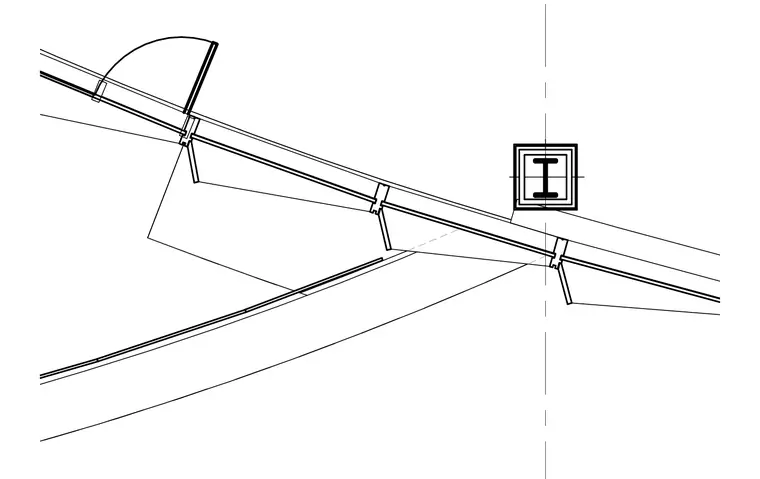

A sloped glazing assembly intersects with a structural steel column enclosed in a profile. The framing members connect continuously along the slope with expressed mullions and captured glazing panes. A structural steel column with a profile shape provides support beneath the sloped roof plane. Alignment lines and centerlines locate the structural grid relative to the glazing mullions.
