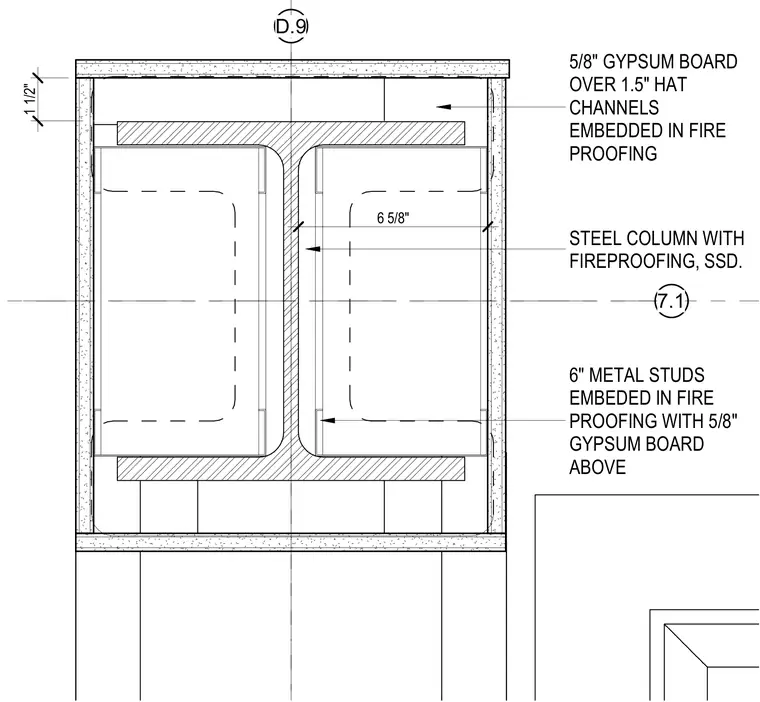

A structural steel column receives a layer of fireproofing with six-inch metal studs embedded on the sides and one-and-a-half-inch hat channels at the top. Five-eighths-inch gypsum board clads the exterior of the framing over the fireproofing.
D.9 7.1 5/8" GYPSUM BOARD OVER 1.5" HAT CHANNELS EMBEDDED IN FIRE PROOFING STEEL COLUMN WITH FIREPROOFING, SSD. 6" METAL STUDS EMBEDED IN FIRE PROOFING WITH 5/8" GYPSUM BOARD ABOVE 1 1/2" 6 5/8"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
