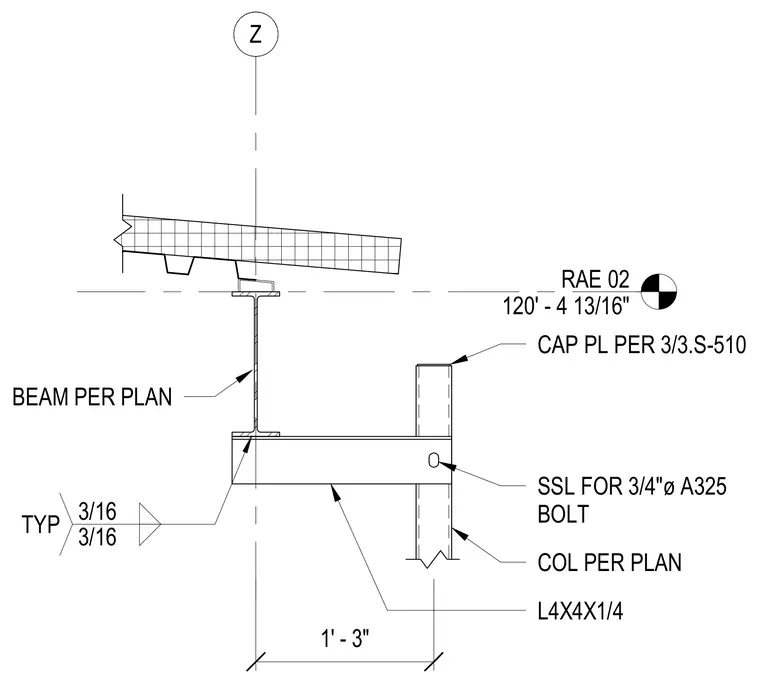

A hollow structural section column per plan receives a cap plate per detail 3/3.S-510 at the top and connects horizontally via an L4x4x1/4 angle. The angle is secured with three-quarter-inch diameter A325 bolts. A beam per plan bears on the assembly, featuring typical three-sixteenth-inch fillet welds.
RAE 02 120' - 4 13/16" Z 3/16 3/16 TYP COL PER PLAN L4X4X1/4 SSL FOR 3/4"ø A325 BOLT BEAM PER PLAN CAP PL PER 3/3.S-510 1' - 3"
