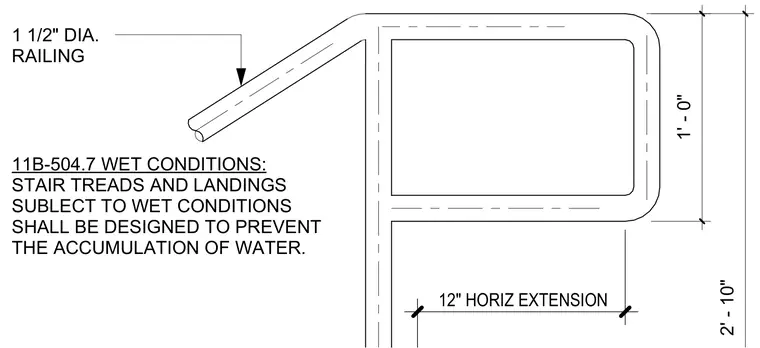

A one and one-half inch diameter railing features a twelve inch horizontal extension and a two feet ten inch vertical dimension. Stair treads and landings subjected to wet conditions must be designed to prevent the accumulation of water in accordance with code section 11B-504.7.
2' - 10" 1 1/2" DIA. RAILING 11B-504.7 WET CONDITIONS: STAIR TREADS AND LANDINGS SUBLECT TO WET CONDITIONS SHALL BE DESIGNED TO PREVENT THE ACCUMULATION OF WATER. 1' - 0" 12" HORIZ EXTENSION
