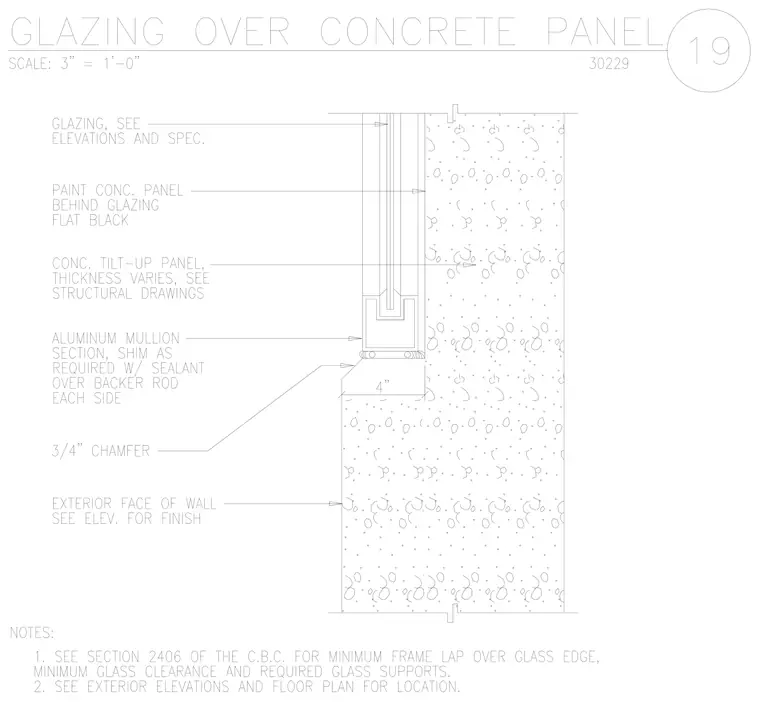

Glazing is positioned over a concrete tilt-up panel of variable thickness, with the concrete panel surface behind the glazing painted flat black. An aluminum mullion section is shimmed as required and sealed with sealant over a backer rod on each side. A three-quarter-inch chamfer is formed at the concrete edge supporting the mullion. The exterior face of the wall finish is coordinated with the exterior elevations.
