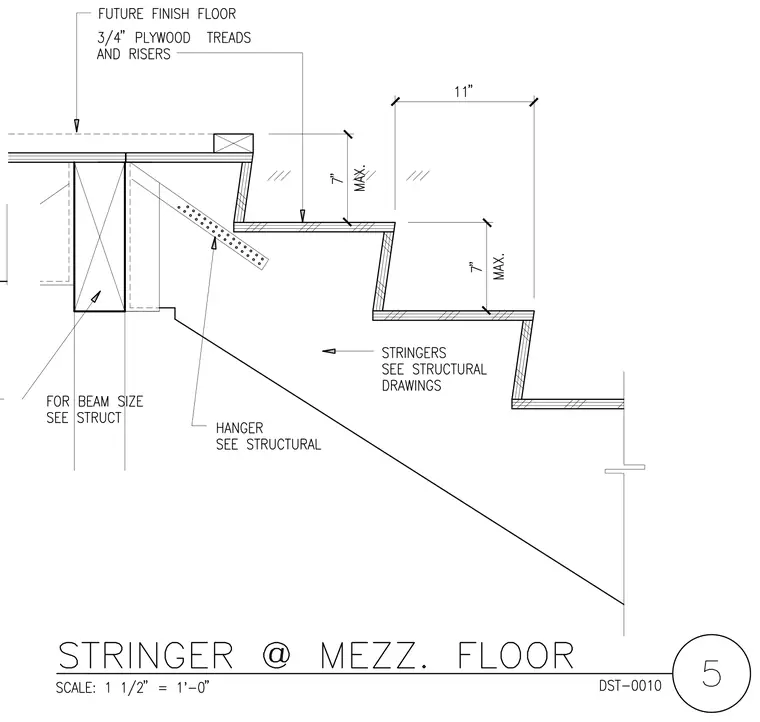

Three-quarter-inch plywood treads and risers receive a future finish floor over structural stringers and hangers sized per structural drawings. Maximum riser height is dimensioned at seven inches, and the tread depth is dimensioned at eleven inches. A structural beam supports the mezzanine assembly with sizes coordinated on the structural drawings.
