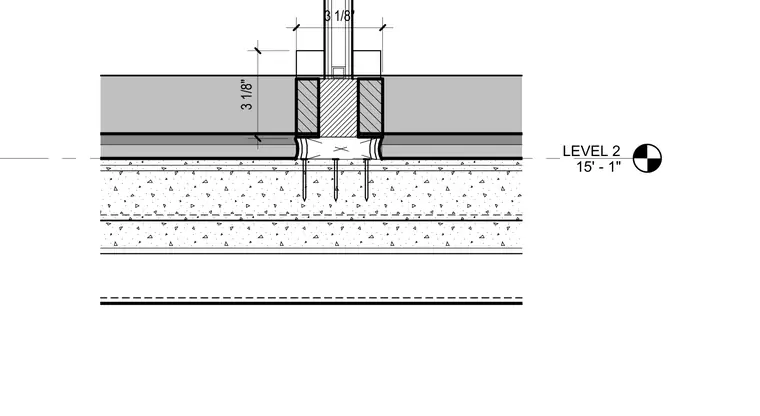

A storefront sill assembly bears upon a concrete floor slab at Level 2, situated at an elevation of 15 feet 1 inch. The storefront framing rests above blocking and shims, secured with mechanical fasteners anchored into the concrete slab. Vertical dimensions of 3 1/8 inches govern the framing clearance and alignment relative to the finished floor edge.
