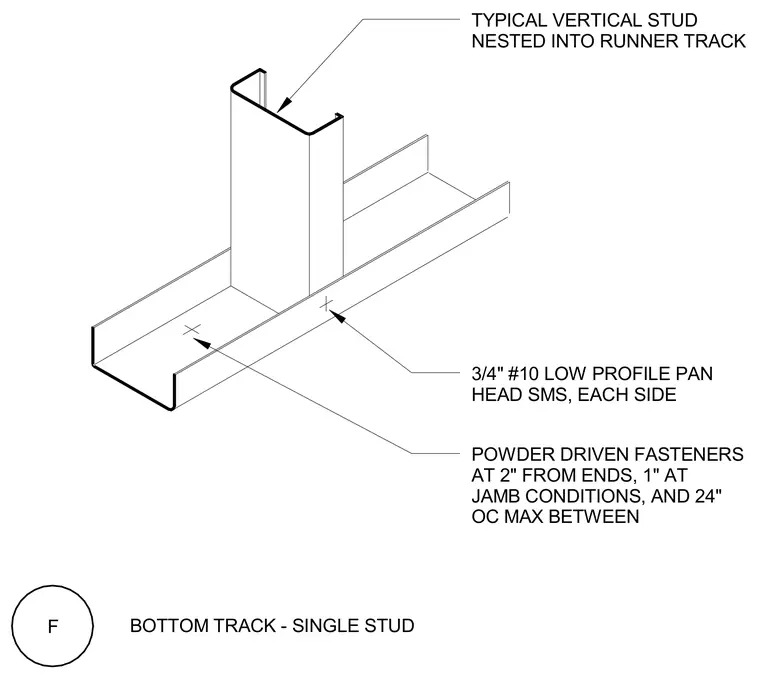

A vertical steel stud nests directly into the runner track at the base of the wall assembly. The stud connects to the runner track using three-quarter inch number ten low-profile pan head sheet metal screws on each side. Powder-driven fasteners secure the runner track to the substrate, spaced at two inches from the ends, one inch at jamb conditions, and a maximum of twenty-four inches on center between.
TYPICAL VERTICAL STUD NESTED INTO RUNNER TRACK 3/4" #10 LOW PROFILE PAN HEAD SMS, EACH SIDE POWDER DRIVEN FASTENERS AT 2" FROM ENDS, 1" AT JAMB CONDITIONS, AND 24" OC MAX BETWEEN F BOTTOM TRACK - SINGLE STUD
