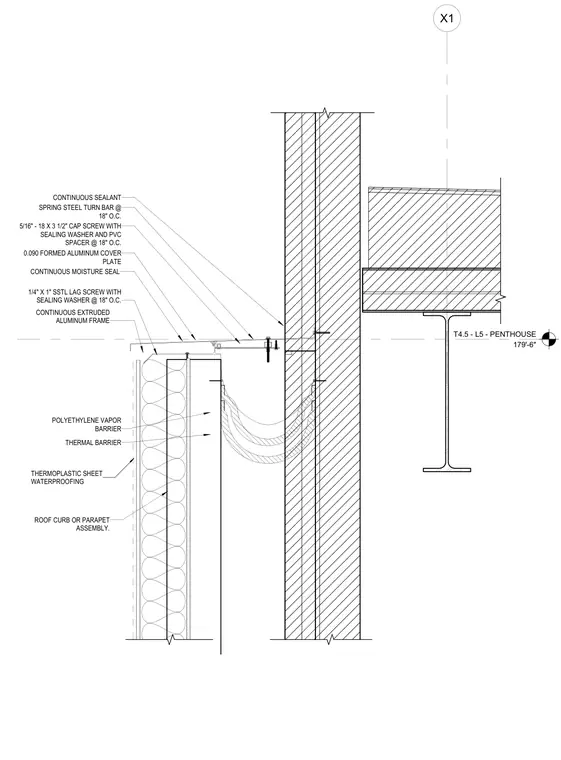

This roof expansion joint assembly spans across structural building separations with a 0.090-inch formed aluminum cover plate secured by a continuous spring steel turn bar spaced at 18 inches on center. The cover plate fastens to a continuous extruded aluminum frame using 5/16-inch by 3 1/2-inch cap screws complete with sealing washers and PVC spacers at 18 inches on center. The extruded aluminum frame is anchored into the roof curb or parapet assembly using 1/4-inch by 1-inch stainless steel lag screws with sealing washers at 18 inches on center. Below the aluminum framing, a continuous moisture seal loops down to accommodate differential movement, backed by a thermoplastic sheet waterproofing membrane, polyethylene vapor barrier, and thermal insulation barrier.
X1 T4.5 - L5 - PENTHOUSE 179'-6" CONTINUOUS SEALANT SPRING STEEL TURN BAR @ 18" O.C. 5/16" - 18 X 3 1/2" CAP SCREW WITH SEALING WASHER AND PVC SPACER @ 18" O.C. 0.090 FORMED ALUMINUM COVER PLATE CONTINUOUS MOISTURE SEAL 1/4" X 1" SSTL LAG SCREW WITH SEALING WASHER @ 18" O.C. CONTINUOUS EXTRUDED ALUMINUM FRAME ROOF CURB OR PARAPET ASSEMBLY. THERMOPLASTIC SHEET WATERPROOFING POLYETHYLENE VAPOR BARRIER THERMAL BARRIER
