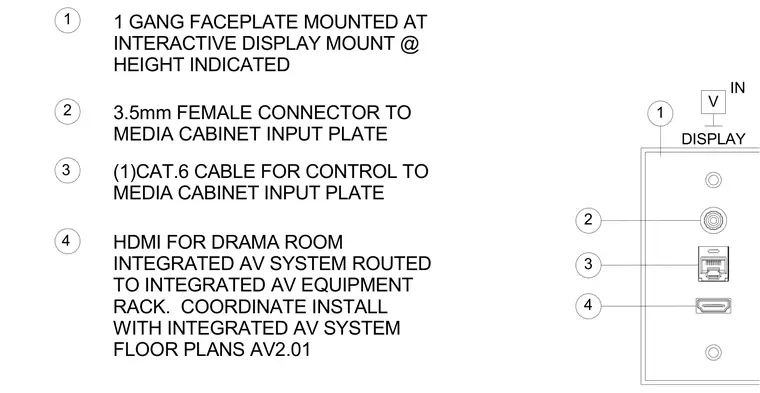

A single gang faceplate is mounted at the interactive display at the height indicated on the drawings. The assembly houses a 3.5mm female connector and a CAT.6 cable for control routed to the media cabinet input plate. An HDMI connection for the drama room integrated AV system routes directly to the integrated AV equipment rack. Installation requires coordination with the integrated AV system floor plans.
1 2 3 2 1 3 4 4 (1)CAT.6 CABLE FOR CONTROL TO MEDIA CABINET INPUT PLATE 3.5mm FEMALE CONNECTOR TO MEDIA CABINET INPUT PLATE 1 GANG FACEPLATE MOUNTED AT INTERACTIVE DISPLAY MOUNT @ HEIGHT INDICATED HDMI FOR DRAMA ROOM INTEGRATED AV SYSTEM ROUTED TO INTEGRATED AV EQUIPMENT RACK. COORDINATE INSTALL WITH INTEGRATED AV SYSTEM FLOOR PLANS AV2.01 DISPLAY V IN
