Architectural · A-4K4D4

Through Wall Overflow Scupper and Drain

Materials

Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Roofs Floors / Slabs Decks Waterproofing / Flashing Insulation Drainage

About this detail

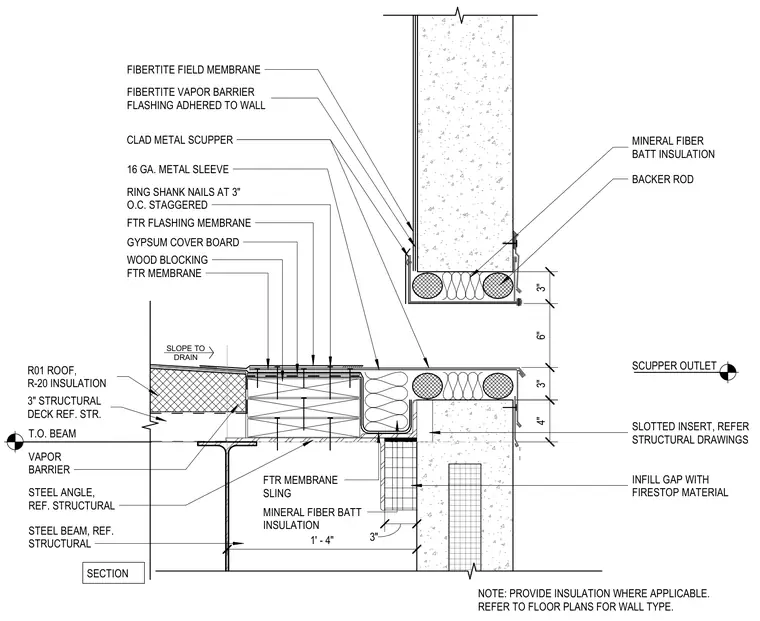

A clad metal scupper and 16-gauge metal sleeve penetrate the wall assembly, integrated with a FiberTite field membrane and vapor barrier flashing adhered to the wall. The roof assembly consists of R-20 insulation over a 3-inch structural deck, supported by a structural steel beam with a vapor barrier and steel angle. Wood blocking with a gypsum cover board is secured using 3-inch ring shank nails at 3 inches on center staggered. Mineral fiber batt insulation, backer rod, and a slotted insert are provided at the wall interface, with gaps infilled with firestop material.
