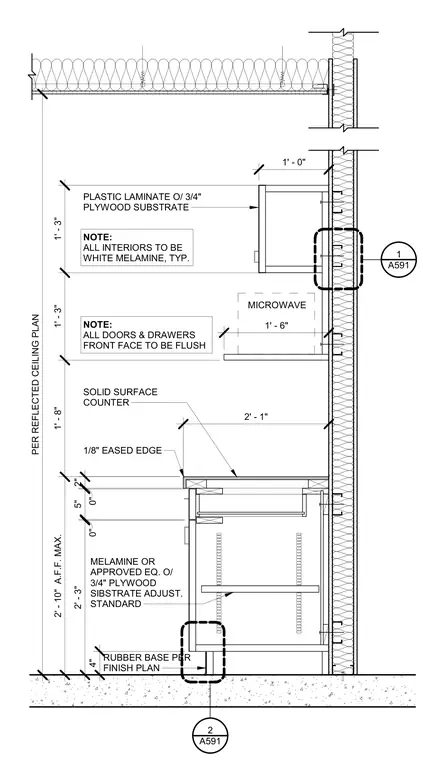

This interior millwork elevation details a casework assembly mounted against a stud wall. The lower base cabinet utilizes a melamine or approved equal finish over a three-quarter-inch plywood substrate with adjustable standards, resting on a four-inch rubber base. A solid surface counter with an one-eighth-inch eased edge caps the base cabinet. An upper wall cabinet finished in plastic laminate over a three-quarter-inch plywood substrate is positioned above, with a designated space for a microwave. All doors and drawer fronts are specified to be flush, and all cabinet interiors are finished in white melamine.
MICROWAVE PER REFLECTED CEILING PLAN 1' - 3" 1' - 3" 1' - 8" 2' - 10" A.F.F. MAX. 2" 0" 5" 0" 2' - 3" 4" RUBBER BASE PER FINISH PLAN MELAMINE OR APPROVED EQ. O/ 3/4" PLYWOOD SIBSTRATE ADJUST. STANDARD 1/8" EASED EDGE SOLID SURFACE COUNTER NOTE: ALL DOORS & DRAWERS FRONT FACE TO BE FLUSH 1' - 6" NOTE: ALL INTERIORS TO BE WHITE MELAMINE, TYP. PLASTIC LAMINATE O/ 3/4" PLYWOOD SUBSTRATE 1' - 0" 2' - 1" A591 2 A591 1
