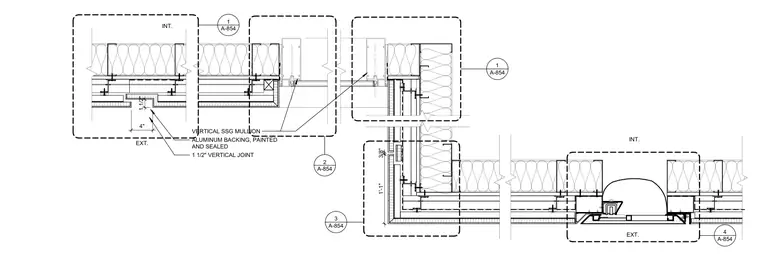

This plan detail shows a vertical wall joint measuring one and one-half inches wide, featuring a four-inch painted and sealed aluminum backing. The assembly incorporates a vertical structural silicone glazed mullion with adjacent framing components. Interior and exterior conditions are indicated with dimensional callouts including three-eighths of an inch and one foot one inch clearances.
INT. EXT. 1 1/2" VERTICAL JOINT VERTICAL SSG MULLION 4" ALUMINUM BACKING, PAINTED AND SEALED 1 1/2" 3/8" 1'-1" INT. EXT. A-854 1 A-854 2 A-854 3 A-854 4 A-854 1
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
