Architectural · A-4JNH5

Pre-Molded PVC Inside and Outside Roof Corners

Materials

Steel Aluminum

Elements

Roofs Waterproofing / Flashing Insulation Drainage Connections / Plates

Connections

Welded Connection Rebar Splice / Development

About this detail

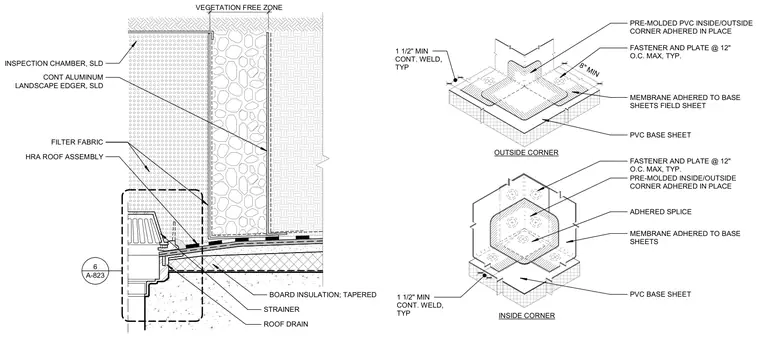

Pre-molded PVC inside and outside corners are adhered in place over PVC base sheets and field sheets. Fasteners and plates are spaced at a maximum of twelve inches on center typically. An eight inch minimum dimension is maintained at corner transitions. A continuous one and a half inch minimum weld is applied typically. The assembly integrates with a tapered board insulation roof system, filter fabric, continuous aluminum landscape edger, inspection chamber, and roof drain with strainer.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
