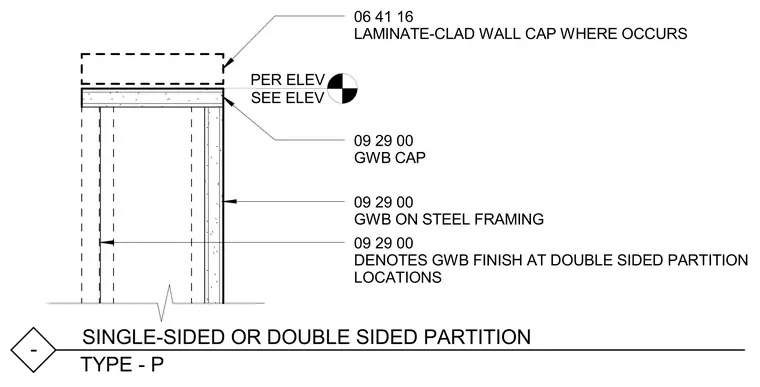

This interior partition detail shows gypsum wallboard installed on steel framing with a gypsum wallboard cap at the top of the assembly. Where specified per elevations, a laminate-clad wall cap is provided above the gypsum wallboard cap. The assembly accommodates both single-sided and double-sided configurations as denoted on the architectural plans.
SINGLE-SIDED OR DOUBLE SIDED PARTITION TYPE - P - 09 29 00 GWB ON STEEL FRAMING 09 29 00 GWB CAP PER ELEV 06 41 16 LAMINATE-CLAD WALL CAP WHERE OCCURS SEE ELEV 09 29 00 DENOTES GWB FINISH AT DOUBLE SIDED PARTITION LOCATIONS
