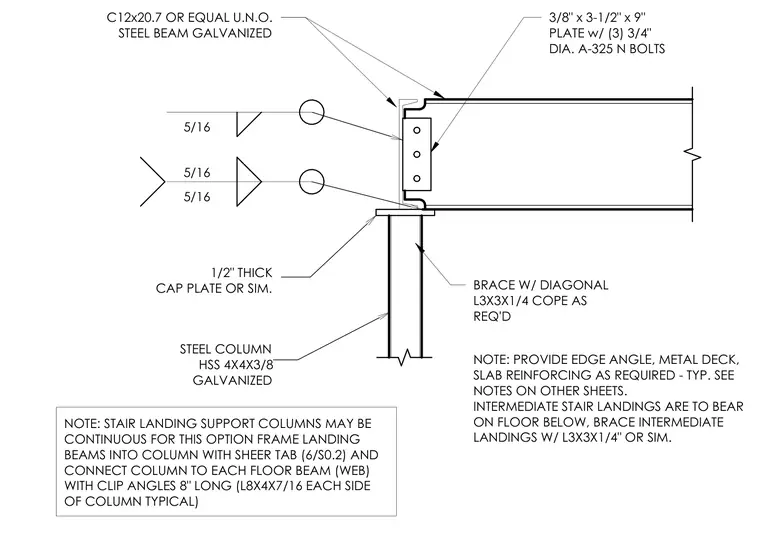

A galvanized steel channel beam (C12x20.7 or equal) is supported by a galvanized hollow structural section (HSS 4x4x3/8) steel column with a 1/2-inch thick cap plate. The beam connects to the support via a 3/8-inch by 3-1/2-inch by 9-inch shear plate secured with three 3/4-inch diameter A-325-N bolts, welded with 5/16-inch fillet welds. Intermediate stair landing columns may be continuous with diagonal angle bracing (L3x3x1/4) and frame into the column with clip angles.
5/16 5/16 1/2" THICK CAP PLATE OR SIM. STEEL COLUMN HSS 4X4X3/8 GALVANIZED C12x20.7 OR EQUAL U.N.O. STEEL BEAM GALVANIZED 5/16 3/8" x 3-1/2" x 9" PLATE w/ (3) 3/4" DIA. A-325 N BOLTS NOTE: PROVIDE EDGE ANGLE, METAL DECK, SLAB REINFORCING AS REQUIRED - TYP. SEE NOTES ON OTHER SHEETS. INTERMEDIATE STAIR LANDINGS ARE TO BEAR ON FLOOR BELOW, BRACE INTERMEDIATE LANDINGS W/ L3X3X1/4" OR SIM. BRACE W/ DIAGONAL L3X3X1/4 COPE AS REQ'D NOTE: STAIR LANDING SUPPORT COLUMNS MAY BE CONTINUOUS FOR THIS OPTION FRAME LANDING BEAMS INTO COLUMN WITH SHEER TAB (6/S0.2) AND CONNECT COLUMN TO EACH FLOOR BEAM (WEB) WITH CLIP ANGLES 8" LONG (L8X4X7/16 EACH SIDE OF COLUMN TYPICAL)
