Architectural · A-4HZXR

Roof Drain and Overflow Drain Sump Assembly

Materials

Elements

Roofs Vaults / Domes Waterproofing / Flashing Drainage

About this detail

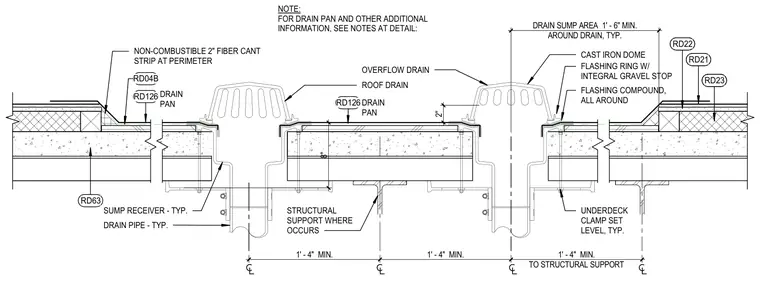

Roof drains and overflow drains are set within a one-foot, six-inch minimum drain sump area featuring a drain pan and structural supports placed as required. A cast-iron dome sits above the drain body, surrounded by a flashing ring with an integral gravel stop and flashing compound applied all around. The drain pipe connects below the deck through an underdeck clamp set level, with a two-inch non-combustible fiber cant strip at the perimeter. Minimum clearances of one foot, four inches are maintained from the drain centerline to the structural support framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
