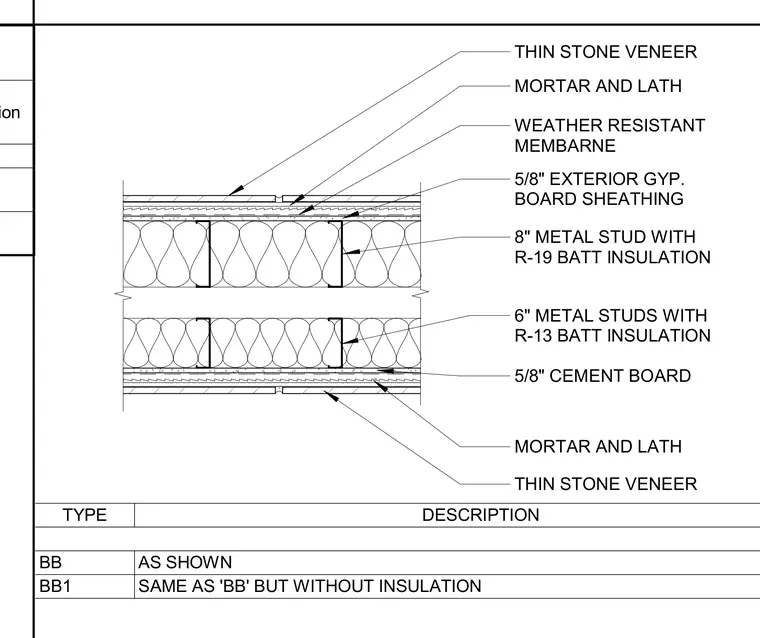

This wall section details a dual-stud exterior assembly featuring an eight-inch metal stud framing layer filled with R-19 batt insulation and sheathed with five-eighths-inch exterior gypsum board. A weather-resistant membrane covers the exterior sheathing, followed by mortar and lath supporting a thin stone veneer finish. The interior side utilizes a six-inch metal stud framing layer with R-13 batt insulation, cement board, mortar and lath, and an additional thin stone veneer finish. A schedule at the base defines the wall type variants with and without insulation.
8" METAL STUD WITH R-19 BATT INSULATION 6" METAL STUDS WITH R-13 BATT INSULATION 5/8" EXTERIOR GYP. BOARD SHEATHING MORTAR AND LATH THIN STONE VENEER 5/8" CEMENT BOARD MORTAR AND LATH THIN STONE VENEER WEATHER RESISTANT MEMBARNE Wall Section TYPE DESCRIPTION BB AS SHOWN BB1 SAME AS 'BB' BUT WITHOUT INSULATION
