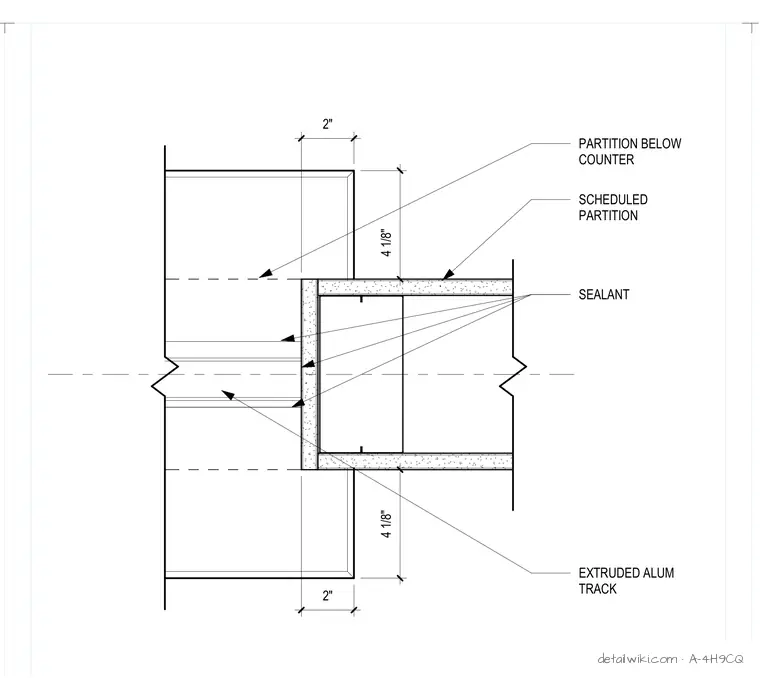

A sliding pass-through window jamb meets a partition wall with an extruded aluminum track recessed into the wall opening and sealant applied at the interface between the track and the partition. The partition below the counter and the scheduled partition align with the 4 1/8 inch deep track profile. The wall construction extends 2 inches beyond the track face on both sides to form the jamb return.
