A continuous metal track runner secures to the concrete floor slab using zero point one eight zero inch power-driven shot pins spaced at sixteen inches on center maximum with one and one-half inch minimum embedment. Metal studs attach to the track through the flange using number eight screws. Gypsum board is installed over the metal studs with base moulding at the finish floor level, and sealant applied at the floor junction. Insulation is provided within the stud cavity when noted on the floor plan.

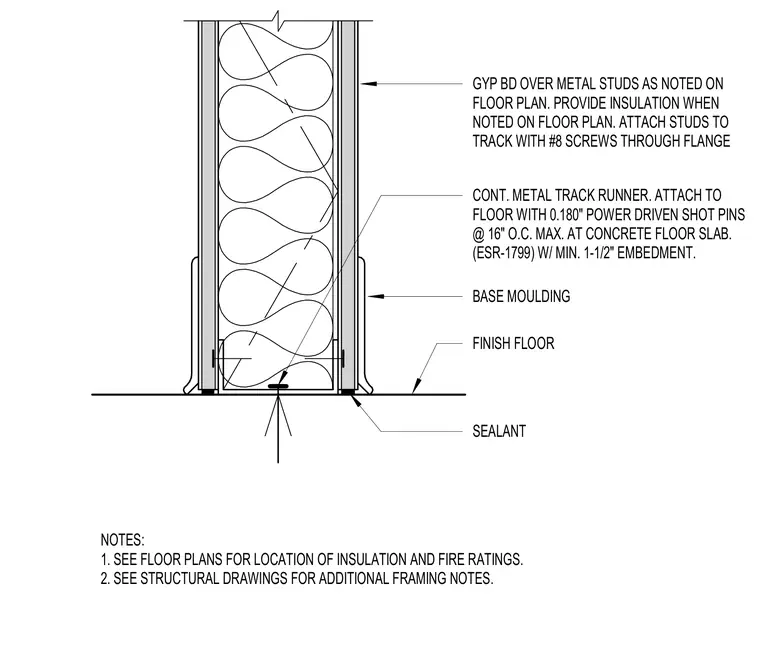

NOTES: 1. SEE FLOOR PLANS FOR LOCATION OF INSULATION AND FIRE RATINGS. 2. SEE STRUCTURAL DRAWINGS FOR ADDITIONAL FRAMING NOTES. GYP BD OVER METAL STUDS AS NOTED ON FLOOR PLAN. PROVIDE INSULATION WHEN NOTED ON FLOOR PLAN. ATTACH STUDS TO TRACK WITH #8 SCREWS THROUGH FLANGE CONT. METAL TRACK RUNNER. ATTACH TO FLOOR WITH 0.180" POWER DRIVEN SHOT PINS @ 16" O.C. MAX. AT CONCRETE FLOOR SLAB. (ESR-1799) W/ MIN. 1-1/2" EMBEDMENT. BASE MOULDING FINISH FLOOR SEALANT
