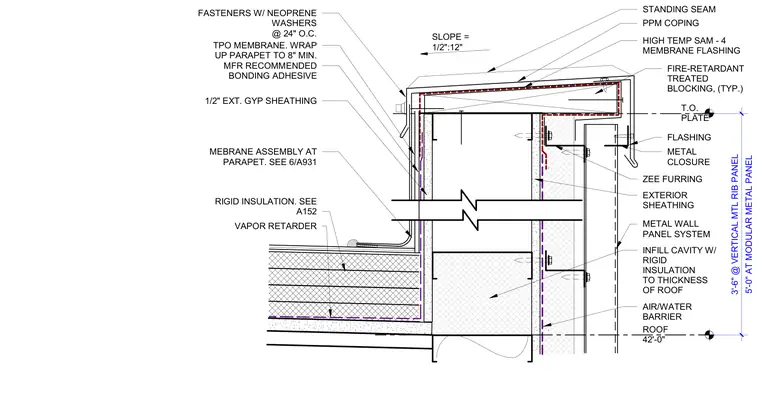

This parapet detail shows a TPO membrane roof transitioning up and over a parapet wall capped with a pre-finished metal coping. The TPO membrane wraps up the parapet to an 8-inch minimum height, adhered using manufacturer-recommended bonding adhesive and secured with fasteners having neoprene washers at 24 inches on center. The assembly is built over fire-retardant treated wood blocking at the top of the plate, with high-temperature self-adhered membrane flashing installed beneath the coping. The exterior wall features a metal wall panel system mounted on zee furring over exterior gypsum sheathing, with an air and water barrier and rigid insulation filling the wall cavity.
PPM COPING HIGH TEMP SAM - 4 MEMBRANE FLASHING FASTENERS W/ NEOPRENE WASHERS @ 24" O.C. METAL CLOSURE METAL WALL PANEL SYSTEM SLOPE = 1/2":12" TPO MEMBRANE. WRAP UP PARAPET TO 8" MIN. MFR RECOMMENDED BONDING ADHESIVE 1/2" EXT. GYP SHEATHING RIGID INSULATION. SEE A152 EXTERIOR SHEATHING FLASHING VAPOR RETARDER T.O. PLATE 5'-0" AT MODULAR METAL PANEL 3'-6" @ VERTICAL MTL RIB PANEL ROOF 42'-0" STANDING SEAM ZEE FURRING FIRE-RETARDANT TREATED BLOCKING, (TYP.) MEBRANE ASSEMBLY AT PARAPET. SEE 6/A931 AIR/WATER BARRIER INFILL CAVITY W/ RIGID INSULATION TO THICKNESS OF ROOF
