Architectural · A-4GZDC

Overhead Coiling Door Jamb at CMU Wall

Materials

Steel Stainless Steel Masonry / CMU Brick

Elements

Walls Doors Facades / Cladding Insulation Millwork / Casework Anchors / Embeds Connections / Plates Reinforcing

About this detail

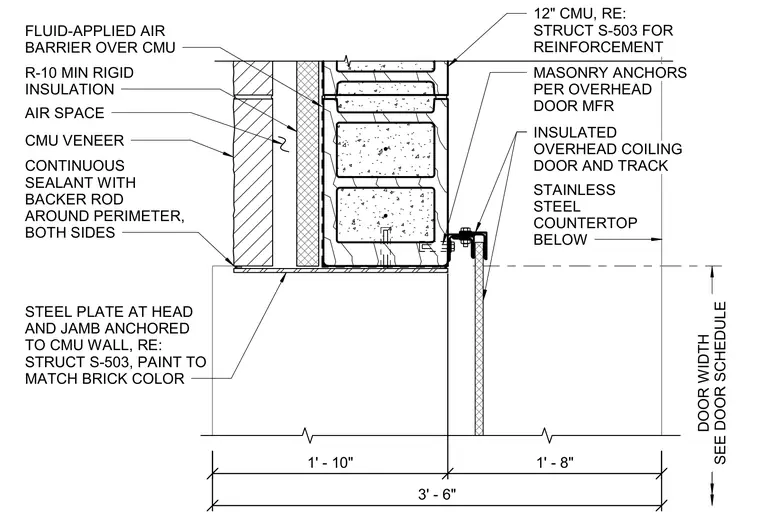

An insulated overhead coiling door and track are anchored to a twelve-inch concrete masonry unit wall with manufacturer-specified masonry anchors. A steel plate is installed at the head and jamb, anchored to the concrete masonry unit wall and painted to match the brick color. The wall assembly consists of a twelve-inch concrete masonry unit backup, a fluid-applied air barrier, ten-inch minimum rigid insulation, an air space, and a concrete masonry unit veneer. Continuous sealant with a backer rod is applied around the perimeter on both sides of the assembly. A stainless steel countertop is positioned below the door width as scheduled.
