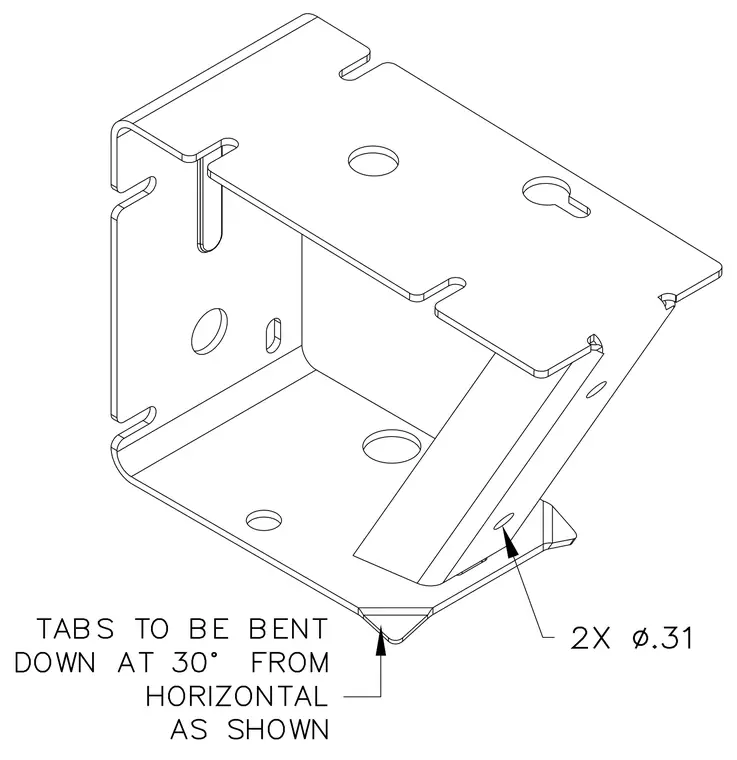

Two sheet metal tabs are bent down at thirty degrees from horizontal as shown. Two zero-point-three-one inch diameter holes pierce the angled side flange.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
