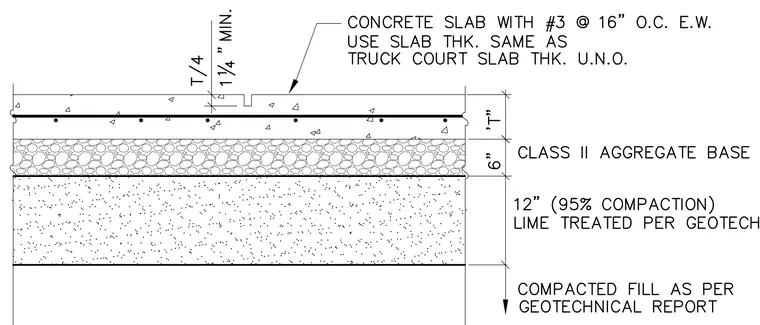

This concrete slab assembly features a control joint cut to a depth of T over 4 with a minimum clearance of one and one-quarter inches. The concrete slab has a thickness of T and is reinforced with number three rebars spaced at sixteen inches on center each way, matching the truck court slab thickness unless noted otherwise. Below the slab rests a six-inch class two aggregate base course. This base sits upon a twelve-inch lime-treated subgrade compacted to ninety-five percent per the geotechnical report, over compacted fill.
