Surface-mounted corner guards are attached to fire-rated gypsum board partitions using screws installed per the manufacturer's instructions. The assembly includes feathered gypsum board joints and accommodates one-hour and two-hour fire barrier configurations as scheduled.

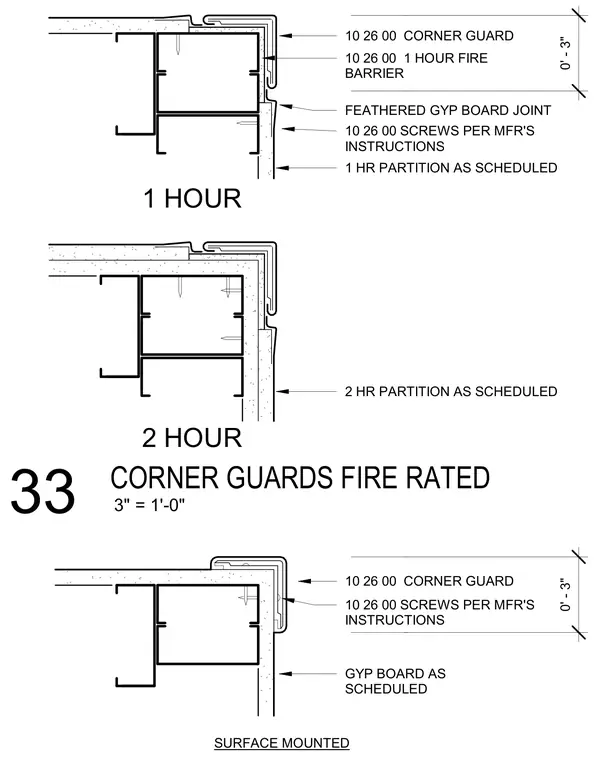

1 HR PARTITION AS SCHEDULED 10 26 00 CORNER GUARD 1 HOUR 2 HOUR FEATHERED GYP BOARD JOINT 10 26 00 SCREWS PER MFR'S INSTRUCTIONS 0' - 3" 10 26 00 1 HOUR FIRE BARRIER 2 HR PARTITION AS SCHEDULED GYP BOARD AS SCHEDULED 10 26 00 CORNER GUARD SURFACE MOUNTED 10 26 00 SCREWS PER MFR'S INSTRUCTIONS 0' - 3" 3" = 1'-0" 33 CORNER GUARDS FIRE RATED
