Typical Single Plate Shear Connection at Steel Column

Materials

Steel

Elements

Beams Connections / Plates

Connections

Shear Tab / Single Plate Welded Connection

About this detail

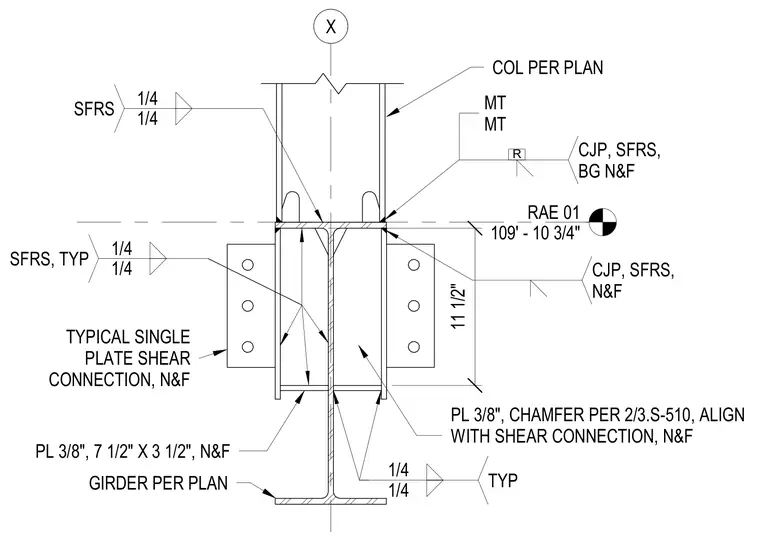

A structural steel column frames into a girder per plan, utilizing a typical single-plate shear connection. The connection employs a 3/8-inch thick plate, measuring 7 1/2 inches by 3 1/2 inches, featuring a chamfer aligned with the shear connection and detailed per sheet S-510. Welds are specified as 1/4-inch fillet welds, with complete joint penetration (CJP) welds and magnetic particle testing (MT) indicated at specific structural intersections. The assembly is part of a seismic force-resisting system (SFRS).
