A circular geometric symbol measuring twelve inches in diameter and one-quarter inch thick is flush-mounted directly onto the door surface. The background color of the sign provides a seventy percent contrast to the underlying door color for enhanced visibility. All installations follow these typical dimensions and mounting requirements.

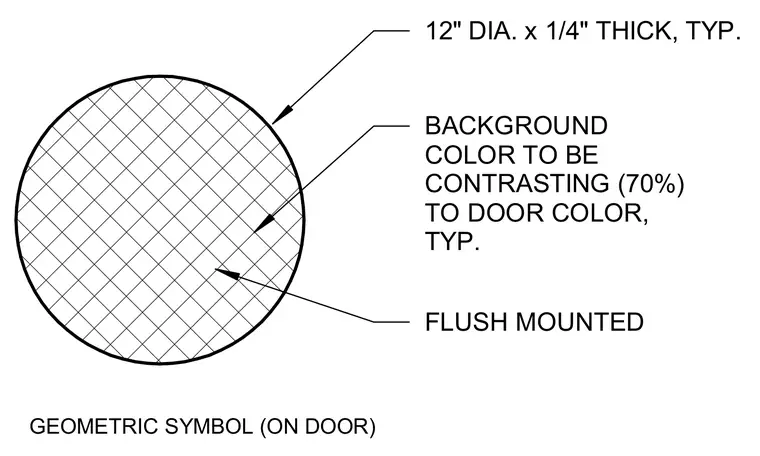

12" DIA. x 1/4" THICK, TYP. BACKGROUND COLOR TO BE CONTRASTING (70%) TO DOOR COLOR, TYP. GEOMETRIC SYMBOL (ON DOOR) FLUSH MOUNTED
