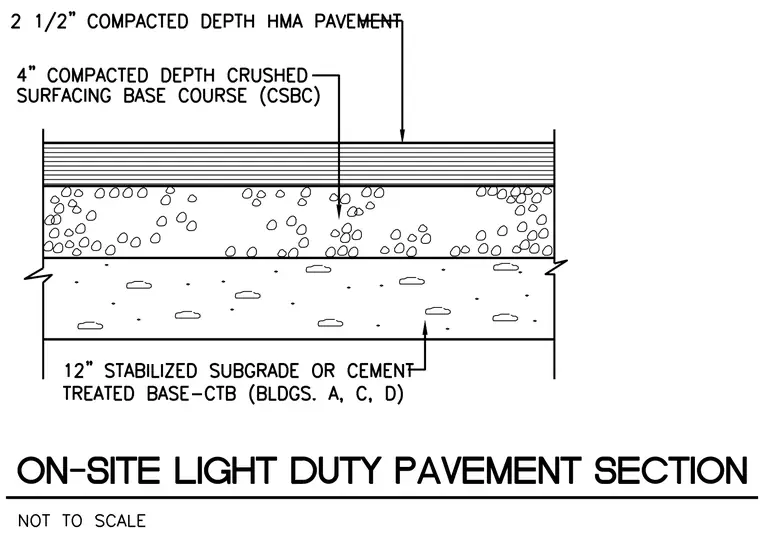

This light duty pavement assembly consists of two and a half inches of compacted depth hot mix asphalt pavement resting on a four inch compacted depth crushed surfacing base course. Below the base course sits a twelve inch stabilized subgrade or cement treated base applicable to buildings A, C, and D.
