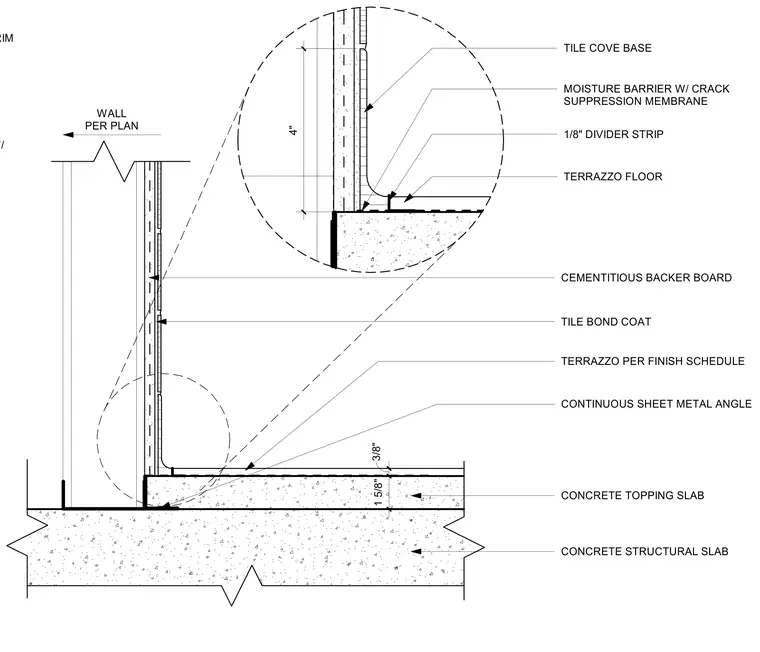

The assembly transitions from a concrete structural slab supporting a concrete topping slab to a wall framed with cementitious backer board and finished with tile per the finish schedule. A continuous sheet metal angle anchors at the base of the wall above the topping slab. A moisture barrier with a crack suppression membrane underlies the terrazzo floor system. An eighth-inch divider strip separates the terrazzo flooring from the tile cove base, which is detailed with a quarter-inch aluminum tile trim. The wall assembly receives a tile bond coat behind the finish tile.
CEMENTITIOUS BACKER BOARD CONCRETE STRUCTURAL SLAB TERRAZZO PER FINISH SCHEDULE TILE BOND COAT CONCRETE TOPPING SLAB WALL PER PLAN CONTINUOUS SHEET METAL ANGLE 3/8" 1 5/8" TILE COVE BASE 1/8" DIVIDER STRIP MOISTURE BARRIER W/ CRACK SUPPRESSION MEMBRANE TERRAZZO FLOOR 4" MOISTURE BARRIER W/ CRACK SUPPRESSION 1/4" ALUMINUM TILE TRIM
