A clear acrylic plastic sign with radius corners is attached directly to the wall surface using adhesive only, with edges caulked with clear silicone. The sign projects one-half inch from the wall surface and requires a non-glare finish with sufficient contrast. Signage must be installed on the wall adjacent to the latch side of the door.

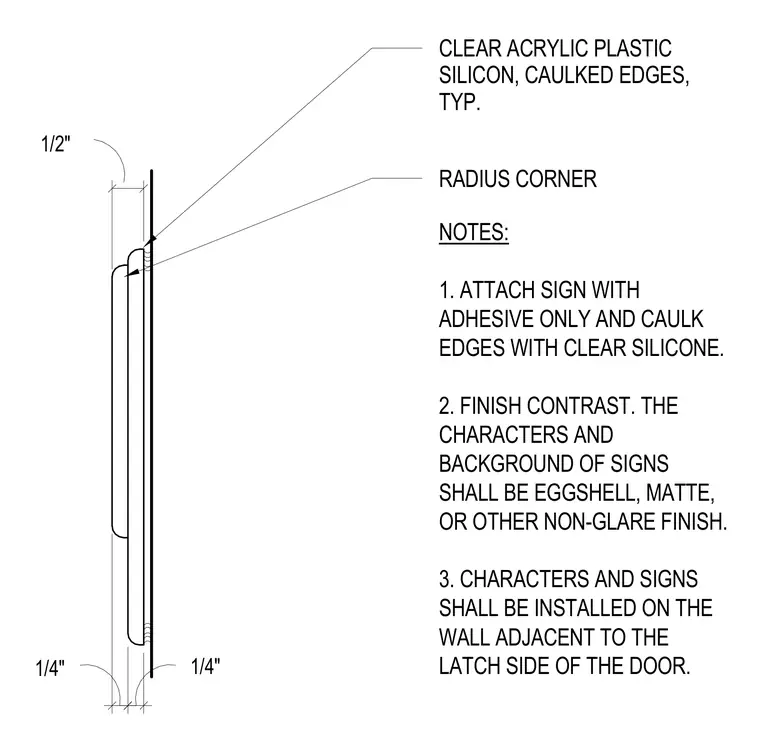

1/2" 1/4" 1/4" NOTES: 1. ATTACH SIGN WITH ADHESIVE ONLY AND CAULK EDGES WITH CLEAR SILICONE. 2. FINISH CONTRAST. THE CHARACTERS AND BACKGROUND OF SIGNS SHALL BE EGGSHELL, MATTE, OR OTHER NON-GLARE FINISH. 3. CHARACTERS AND SIGNS SHALL BE INSTALLED ON THE WALL ADJACENT TO THE LATCH SIDE OF THE DOOR. CLEAR ACRYLIC PLASTIC SILICON, CAULKED EDGES, TYP. RADIUS CORNER
