Architectural · A-4FN7D

Curtain Wall and Door Frame Integration Detail

Materials

Timber / Wood Glass / Glazing EIFS / Plaster / Stucco

Elements

Beams Walls Doors Windows Curtain Walls Ceilings Floors / Slabs Entrances

About this detail

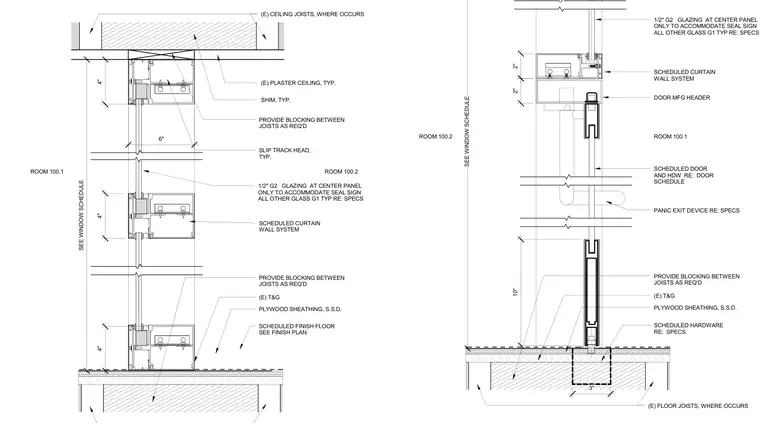

This interior partition detail shows a scheduled curtain wall system intersecting with existing floor joists, tongue-and-groove decking, and plywood sheathing. A slip track head is installed below existing ceiling joists and a typical plaster ceiling, with wood blocking provided between joists as required. The aluminum curtain wall framing receives one-half inch G2 glazing at the center panel to accommodate a seal sign, while all other glass is standard G1 per specifications. A scheduled door manufacturer header and panic exit device are integrated into the opening between rooms 100.1 and 100.2.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
