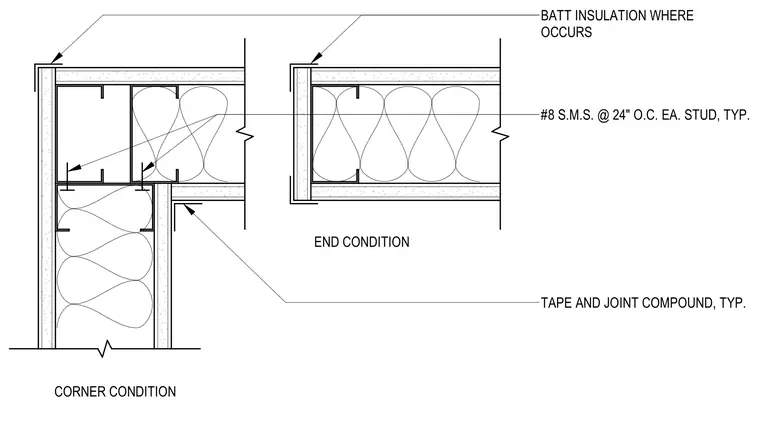

The corner condition utilizes a double-stud configuration to provide a solid backing for gypsum board, with the studs fastened together using number eight sheet metal screws at twenty-four inches on center at each stud, typical. The end condition features a single stud capped with a corner bead, with batt insulation installed within the stud cavity where indicated. Both conditions are finished with tape and joint compound at the corner intersections, typical. Exterior corners are protected by metal corner beads, with batt insulation provided in the wall cavity as specified.
