Architectural · A-4FAWQ

Curtain Wall Tensile Pin Connector and Canopy Details

Materials

Steel Glass / Glazing Aluminum Metal (misc.)

Elements

Beams Doors Canopies Floors / Slabs Expansion / Control Joints Waterproofing / Flashing Drainage Entrances Anchors / Embeds Connections / Plates Roof / Floor Openings

Connections

HSS Connection Bolted Connection

About this detail

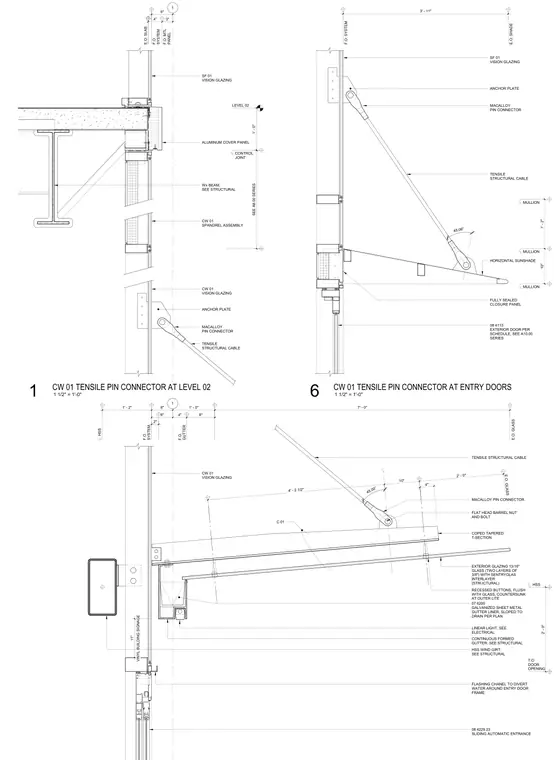

Curtain wall and canopy details feature tensile structural cables connected via Macalloy pin connectors and anchor plates at level 02 and the main entry doors. The assembly incorporates hollow structural section wind girts, wide flange structural steel beams, exterior vision glazing composed of thirteen-sixteenths inch glass with a structural SentryGlas interlayer, and a continuous formed gutter with a galvanized sheet metal liner sloped to drain per plan. Additional components include a coped tapered T-section, horizontal sunshades, sliding automatic entrance doors, and a flashing channel to divert water around the entry door frame. Flat head barrel nuts and bolts secure exterior glazing with recessed buttons flush with the glass and countersunk at the outer lite.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
