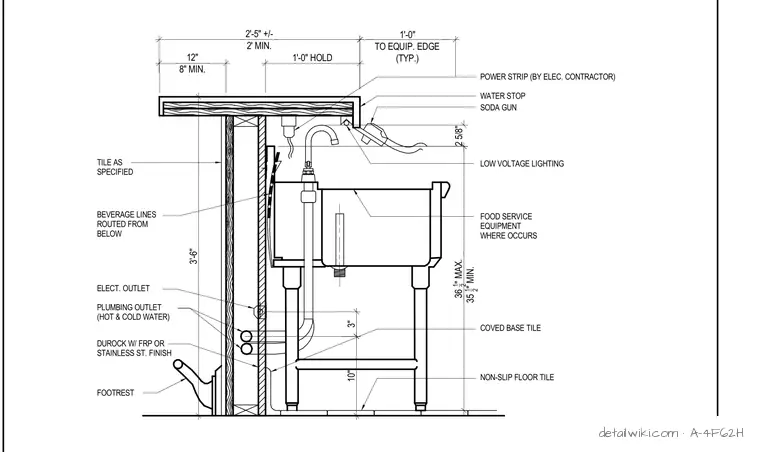

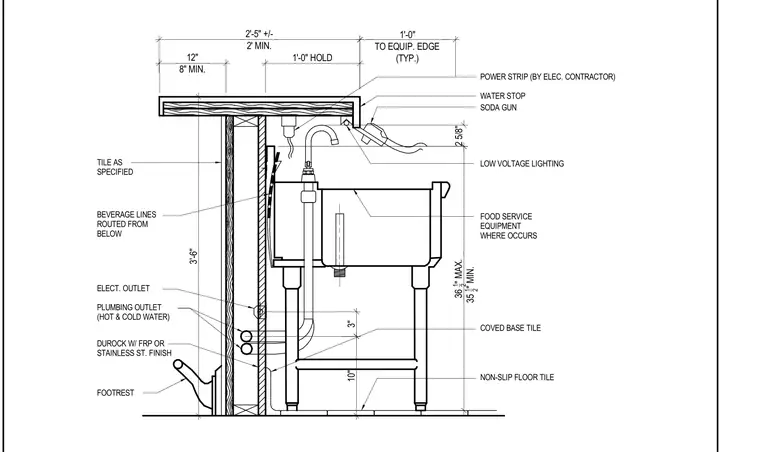

The bar counter assembly consists of a countertop with a water stop and an integrated soda gun, supported by a wall finished with tile as specified over Durock with fiber-reinforced plastic or stainless steel finish. A food service equipment sink is positioned beneath the counter, with beverage lines routed from below and hot and cold water plumbing outlets located within the wall cavity. Electrical outlets are provided in the wall, while a power strip and low-voltage lighting are mounted under the counter edge. The floor assembly includes non-slip floor tile and a coved base tile, with a footrest attached to the front of the wall base.
