An eighty-thousandths-inch-thick aluminum sign panel is finished with blue reflectorized paint and one-inch-high white reflectorized graphics containing standard towing language for accessible spaces. The sign panel measures one foot six inches wide by two feet high with one-inch typical corner radii. It is secured to the support post using three one-eighth-inch diameter by three-quarter-inch self-tapping vandal-proof screws. The support consists of a two-inch diameter standard-weight galvanized steel pipe post mounted to a one-foot diameter concrete footing with a sloped top to drain. The post extends to a height of six feet eight inches in path-of-travel areas or three feet zero inches in landscaping above finished grade or paving.

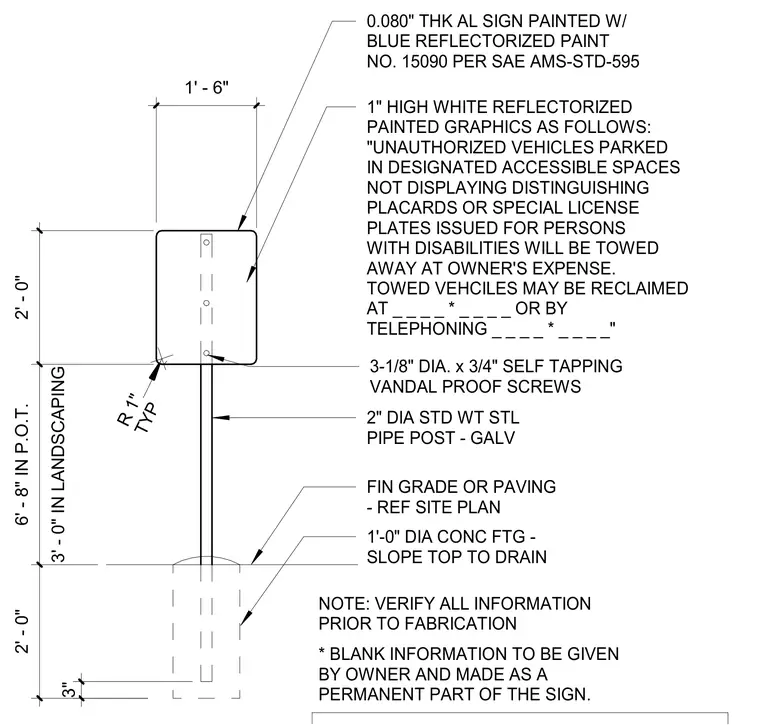

0.080" THK AL SIGN PAINTED W/ BLUE REFLECTORIZED PAINT NO. 15090 PER SAE AMS-STD-595 1" HIGH WHITE REFLECTORIZED PAINTED GRAPHICS AS FOLLOWS: "UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT OWNER'S EXPENSE. TOWED VEHCILES MAY BE RECLAIMED AT _ _ _ _ * _ _ _ _ OR BY TELEPHONING _ _ _ _ * _ _ _ _" 3-1/8" DIA. x 3/4" SELF TAPPING VANDAL PROOF SCREWS 2" DIA STD WT STL PIPE POST - GALV FIN GRADE OR PAVING - REF SITE PLAN 1'-0" DIA CONC FTG - SLOPE TOP TO DRAIN NOTE: VERIFY ALL INFORMATION PRIOR TO FABRICATION * BLANK INFORMATION TO BE GIVEN BY OWNER AND MADE AS A PERMANENT PART OF THE SIGN. 2' - 0" 3' - 0" IN LANDSCAPING 6' - 8" IN P.O.T. 2' - 0" 3" TYP R 1" 1' - 6"
