The glass door head assembly anchors to a light-gauge metal header provided by the design-build contractor. A standard 4-inch aluminum header houses a standard concealed door closer. The glass door system connects below via a standard door rail equipped with a pivot insert.

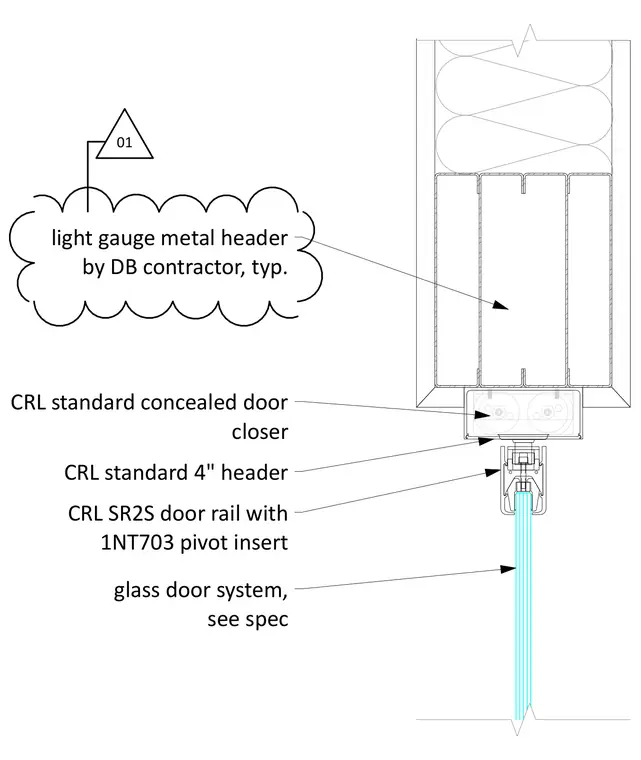

glass door system, see spec CRL standard concealed door closer light gauge metal header by DB contractor, typ. CRL standard 4" header CRL SR2S door rail with 1NT703 pivot insert 01
