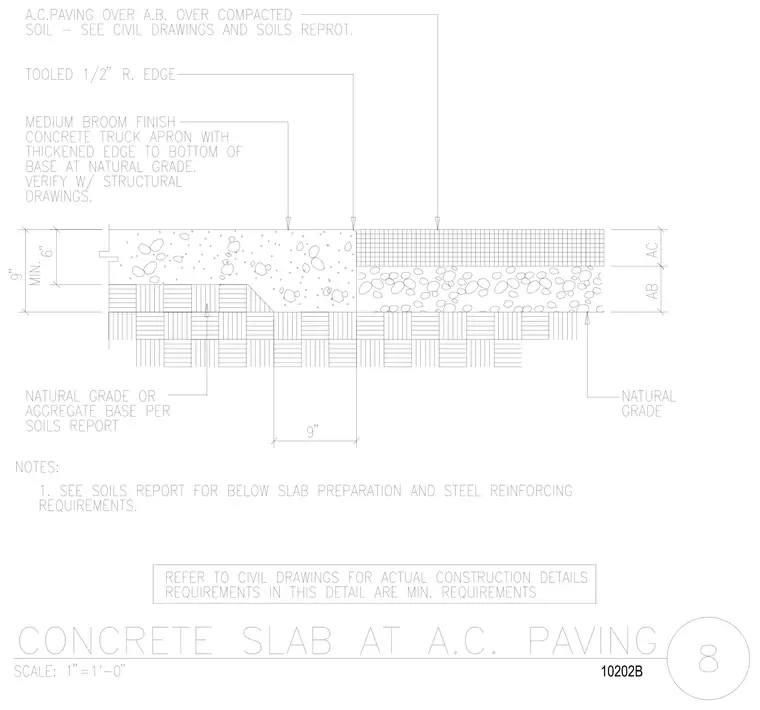

A medium broom finish concrete truck apron features a thickened edge to the bottom of the base at natural grade, with a tooled one-half inch radius edge adjacent to asphalt concrete paving over aggregate base over compacted soil. The concrete slab has a nine inch minimum thickness and nine inch thickened edge transition. Natural grade or aggregate base is placed per the soils report below the paving sections. Refer to civil drawings for actual construction details and soils report for below slab preparation and steel reinforcing requirements.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
