Architectural · A-4ESVK

North Classroom Corner at Foundation

Materials

Steel Cold-formed Steel Timber / Wood Stone Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Columns Walls Doors Windows Curtain Walls Railings / Guards Roofs Canopies Ceilings Floors / Slabs Foundations / Footings Bracing Insulation Millwork / Casework Connections / Plates

Connections

HSS Connection

About this detail

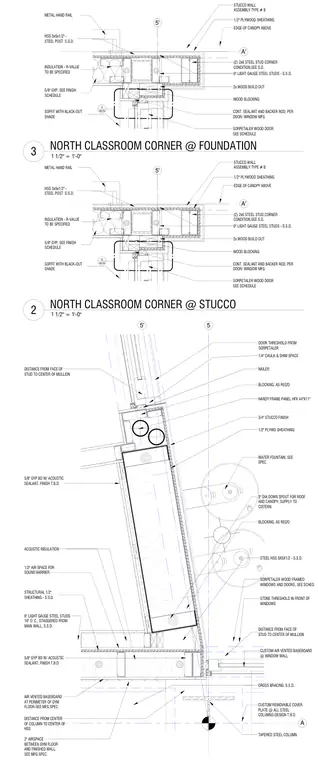

Corner intersection of a classroom exterior wall at the foundation level. The assembly incorporates a stucco finish over half-inch plywood sheathing backed by six-inch light gauge steel studs spaced sixteen inches on center. An HSS 5x5x1/2 steel post serves as the structural column, accompanied by a tapered steel column and a custom removable cover plate. Interior partitions feature five-eighths inch gypsum board with acoustic sealant and acoustic insulation separated by a half-inch air space for sound barrier performance. Sorpetaler wood framed windows and doors are integrated with continuous sealant and backer rod per manufacturer specifications, complete with a stone threshold and door threshold. Additional elements include wood blocking, a metal hand railing, and a three-inch diameter downspout supplying a cistern.

5 HARDY FRAME PANEL HFX 44"X11" 3/4" STUCCO FINISH CROSS BRACING, S.S.D. TAPERED STEEL COLUMN 1/4" CAULK & SHIM SPACE NAILER 1/2" PLYWD SHEATHING BLOCKING, AS REQ'D 5/8" GYP BD W/ ACOUSTIC SEALANT, FINISH T.B.D. ACOUSTIC INSULATION A AIR VENTED BASEBOARD AT PERIMETER OF GYM FLOOR-SEE MFG SPEC. 2" AIRSPACE BETWEEN GYM FLOOR AND FINISHED WALL. SEE MFG SPEC. 1/2" AIR SPACE FOR SOUND BARRIER STRUCTURAL 1/2" SHEATHING - S.S.D. 5/8" GYP BD W/ ACOUSTIC SEALANT, FINISH T.B.D DOOR THRESHOLD FROM SORPETALER STEEL HSS 5X5X1/2 - S.S.D. SORPETALER WOOD FRAMED WINDOWS AND DOORS, SEE SCHED. CUSTOM AIR VENTED BASEBOARD @ WINDOW WALL 3" DIA DOWN SPOUT FOR ROOF AND CANOPY, SUPPLY TO CISTERN CUSTOM REMOVABLE COVER PLATE @ ALL STEEL COLUMNS-DESIGN T.B.D. WATER FOUNTAIN, SEE SPEC. STONE THRESHOLD IN FRONT OF WINDOWS BLOCKING, AS REQ'D DISTANCE FROM FACE OF STUD TO CENTER OF MULLION 6" LIGHT GAUGE STEEL STUDS 16" O. C., STAGGERED FROM MAIN WALL, S.S.D. DISTANCE FROM FACE OF STUD TO CENTER OF MULLION DISTANCE FROM CENTER OF COLUMN TO CENTER OF HSS 5' 5' A' STUCCO WALL ASSEMBLY TYPE # B 1/2" PLYWOOD SHEATHING HSS 5x5x1/2" - STEEL POST S.S.D. METAL HAND RAIL 5/8" GYP, SEE FINISH SCHEDULE EDGE OF CANOPY ABOVE SOFFIT WITH BLACK-OUT SHADE A8.20 8 SORPETALER WOOD DOOR SEE SCHEDULE 6" LIGHT GAUGE STEEL STUDS - S.S.D. (2) 2x6 STEEL STUD CORNER CONDITION,SEE S.D. 2x WOOD BUILD OUT WOOD BLOCKING CONT. SEALANT AND BACKER ROD, PER DOOR/ WINDOW MFG INSULATION - R-VALUE TO BE SPECIFIED 5' A' STUCCO WALL ASSEMBLY TYPE # B 1/2" PLYWOOD SHEATHING HSS 5x5x1/2" - STEEL POST S.S.D. METAL HAND RAIL 5/8" GYP, SEE FINISH SCHEDULE EDGE OF CANOPY ABOVE SOFFIT WITH BLACK-OUT SHADE A8.20 8 SORPETALER WOOD DOOR SEE SCHEDULE 6" LIGHT GAUGE STEEL STUDS - S.S.D. (2) 2x6 STEEL STUD CORNER CONDITION,SEE S.D. 2x WOOD BUILD OUT WOOD BLOCKING CONT. SEALANT AND BACKER ROD, PER DOOR/ WINDOW MFG INSULATION - R-VALUE TO BE SPECIFIED 1 1/2" = 1'-0" 2 NORTH CLASSROOM CORNER @ STUCCO 1 1/2" = 1'-0" 3 NORTH CLASSROOM CORNER @ FOUNDATION
