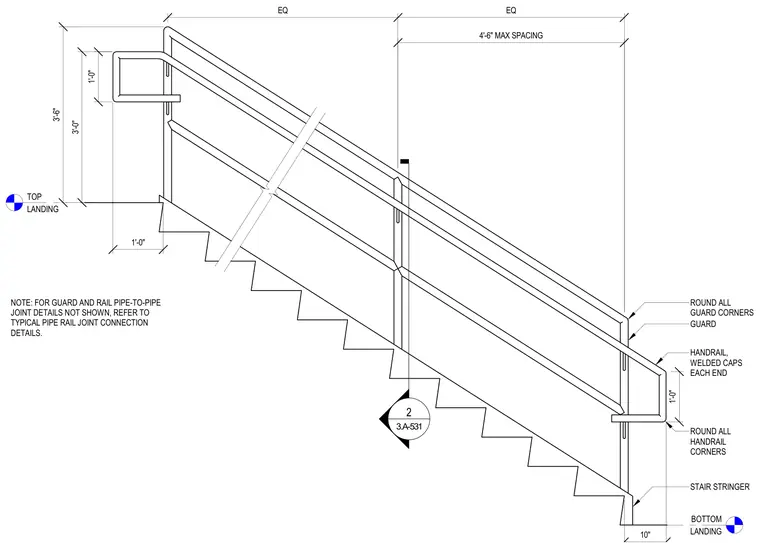

A stair stringer supports a combined handrail and guard system. The guard assembly includes top and intermediate rails with a maximum spacing of four feet six inches between vertical supports. The handrail features welded caps at each end and all corners on both the guard and handrail are rounded. A general note directs users to typical pipe rail joint connection details for unshown conditions.
HANDRAIL, WELDED CAPS EACH END BOTTOM LANDING TOP LANDING STAIR STRINGER EQ EQ 4'-6" MAX SPACING 3'-0" 1'-0" 1'-0" 3'-6" GUARD 10" 1'-0" ROUND ALL GUARD CORNERS ROUND ALL HANDRAIL CORNERS NOTE: FOR GUARD AND RAIL PIPE-TO-PIPE JOINT DETAILS NOT SHOWN, REFER TO TYPICAL PIPE RAIL JOINT CONNECTION DETAILS. 2 3.A-531
