Restroom Accessibility Clearances and Lavatory Mounting Details

Materials

Elements

Walls Floors / Slabs Insulation Drainage

About this detail

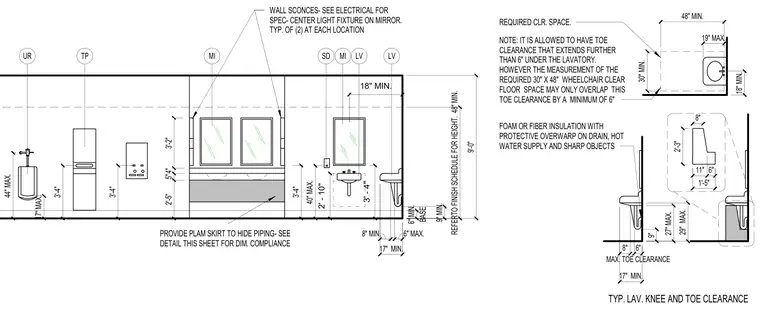

This drawing outlines accessible restroom fixture mounting heights and clear floor space requirements. It details clearances for water closets, urinals, mirrors, and lavatories, including required knee and toe spaces. Foam or fiber insulation with protective overwrap is specified for drains, hot water supplies, and sharp objects beneath lavatories. Plastic laminate skirts are provided to conceal piping where applicable.
