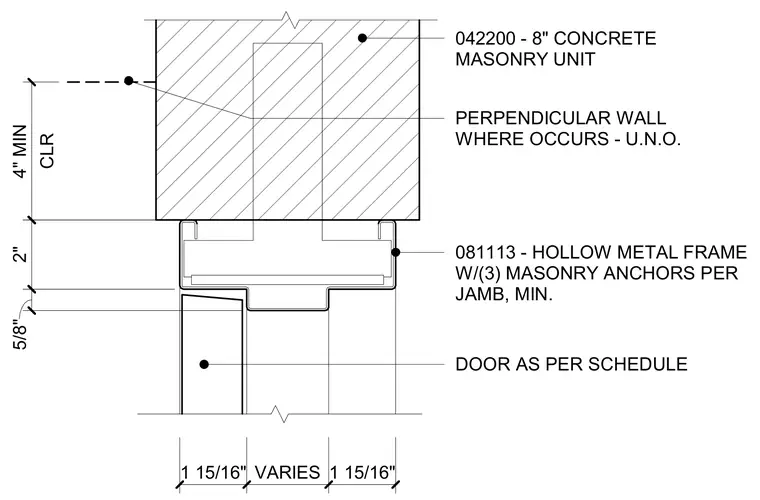

An eight-inch concrete masonry unit wall supports a hollow metal door frame secured by three masonry anchors per jamb minimum. A door sized per the door schedule aligns within the frame rabbet. Clearances and dimensions include a four-inch minimum perpendicular wall clearance where applicable.
2" 081113 - HOLLOW METAL FRAME W/(3) MASONRY ANCHORS PER JAMB, MIN. 042200 - 8" CONCRETE MASONRY UNIT CLR 4" MIN PERPENDICULAR WALL WHERE OCCURS - U.N.O. DOOR AS PER SCHEDULE 1 15/16" VARIES 1 15/16" 5/8"
