Architectural · A-4DXRB

Stair Section at Floor Bottom Landing with Guardrail

Materials

Elements

Walls Stairs Railings / Guards Floors / Slabs

About this detail

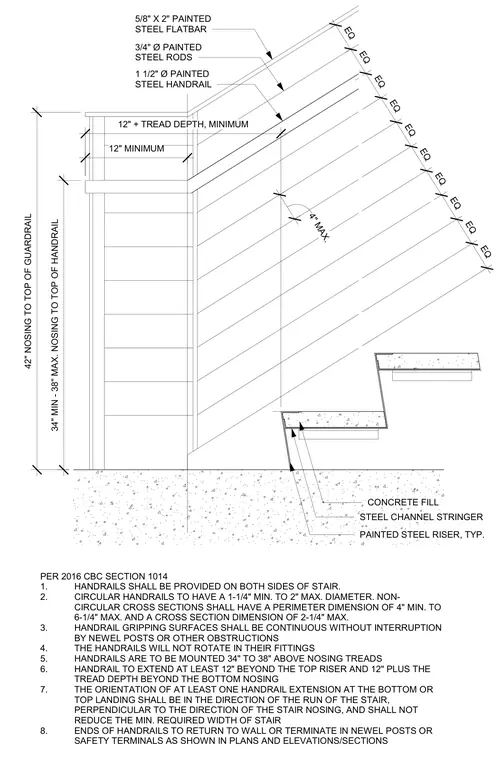

Stair section at the bottom landing, anchored by a concrete slab and supported by steel channel stringers with concrete-filled treads and typical painted steel risers. A guardrail assembly is mounted along the stair, incorporating a 1-1/2" diameter painted steel handrail, 3/4" diameter painted steel rods, and a 5/8" x 2" painted steel flatbar. The handrail is positioned between 34" and 38" above the stair nosing treads, while the guardrail extends 42" to the top. Required extensions of 12" plus the tread depth are maintained at the bottom nosing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
