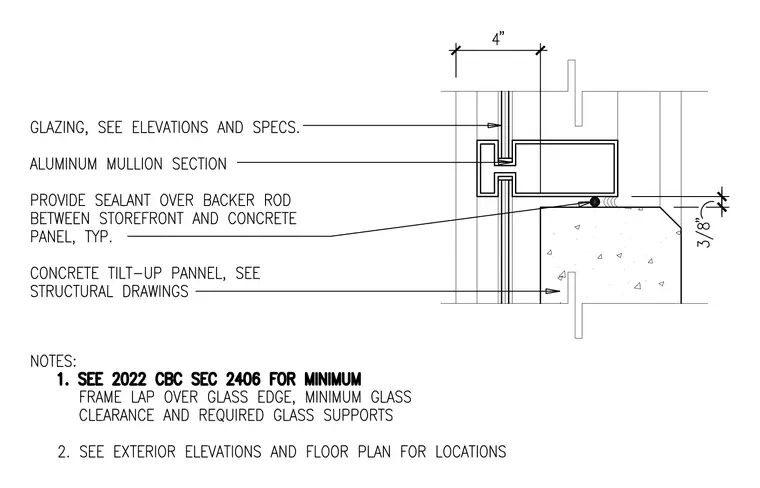

An aluminum mullion section houses glazing specified per elevations and specifications, positioned four inches from the adjacent construction line. A concrete tilt-up panel supports the storefront assembly with a typical joint containing sealant over a backer rod. The concrete panel features a three-eighths inch joint clearance and is detailed further on structural drawings. General notes reference the 2022 California Building Code Section 2406 for minimum frame lap over the glass edge, minimum glass clearance, and required glass supports.
