Architectural · A-4DN7X

Gypsum Shaft Wall Assembly Details and Schedule

Materials

Elements

About this detail

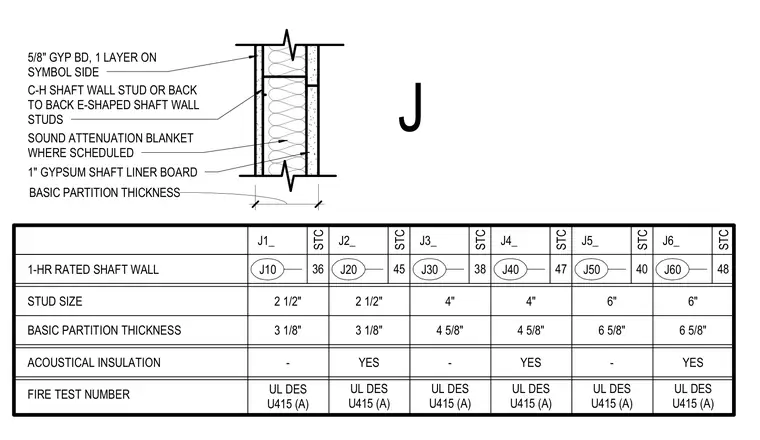

This one-hour fire-rated shaft wall assembly is constructed with C-H shaft wall studs or back-to-back E-shaped shaft wall studs, one-inch gypsum shaft liner board, and five-eighths-inch gypsum board layers. A sound attenuation blanket is included where scheduled. The accompanying schedule details stud sizes ranging from two-and-a-half inches to six inches, basic partition thicknesses from three-and-an-eighth inches to six-and-an-eighth inches, STC ratings, and UL Design U415 (A) fire test numbers.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership

Similar details
