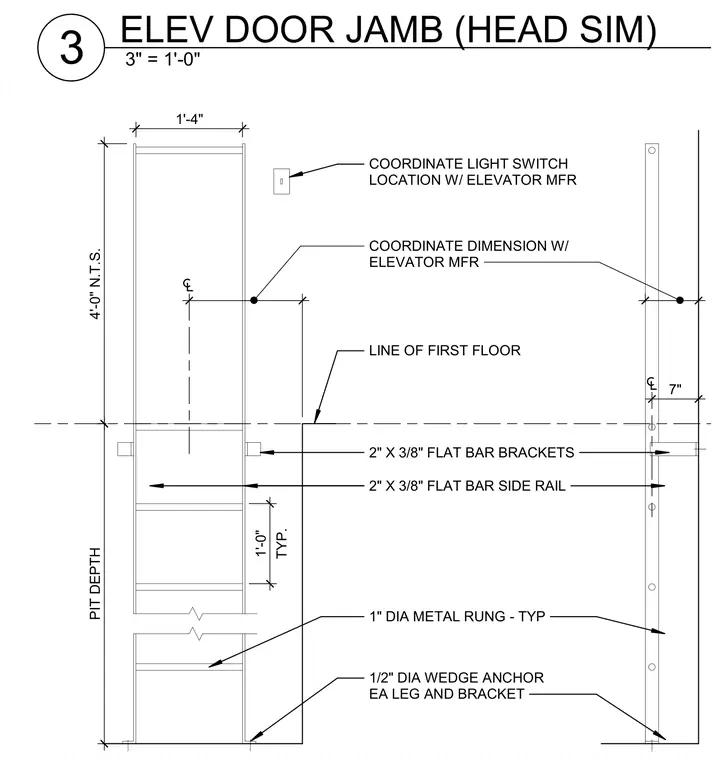

An elevator pit ladder is fabricated with two-inch by three-eighths-inch flat bar side rails and one-inch diameter metal rungs spaced at one-foot typical intervals. The ladder is secured to the pit structure using two-inch by three-eighths-inch flat bar brackets fastened with one-half-inch diameter wedge anchors at each leg and bracket. Dimensions establish pit depth, clearance from the first floor line, and light switch locations coordinated with the elevator manufacturer.
COORDINATE LIGHT SWITCH LOCATION W/ ELEVATOR MFR 1'-4" 4'-0" N.T.S. PIT DEPTH COORDINATE DIMENSION W/ ELEVATOR MFR 1 1 LINE OF FIRST FLOOR 2" X 3/8" FLAT BAR BRACKETS 2" X 3/8" FLAT BAR SIDE RAIL 1" DIA METAL RUNG - TYP 1/2" DIA WEDGE ANCHOR EA LEG AND BRACKET TYP. 1'-0" 7" 3" = 1'-0" 3 ELEV DOOR JAMB (HEAD SIM)
