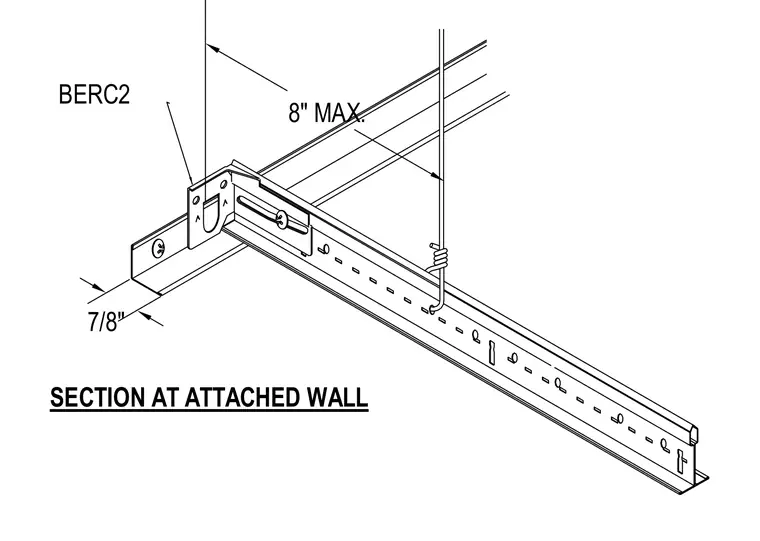

A suspended ceiling main runner tee intersects a perimeter wall angle with a BERC2 clip. The wall angle features a seven-eighths inch horizontal leg and is fastened to the wall assembly. A hanger wire supports the main tee at a maximum spacing of eight inches from the wall attachment.
8" MAX. 7/8" BERC2 SECTION AT ATTACHED WALL
