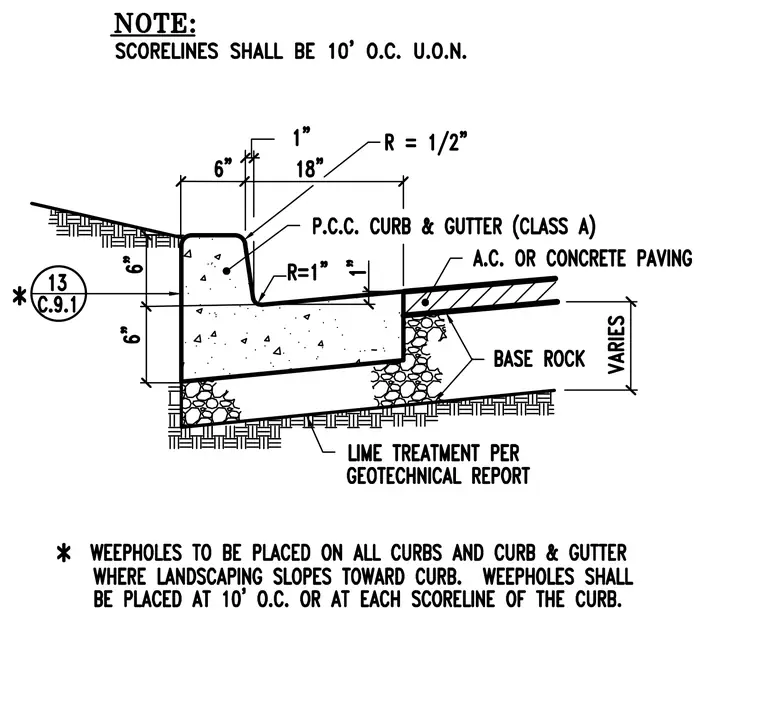

Portland cement concrete curb and gutter sits on a compacted base rock layer with varying thickness over lime treatment per the geotechnical report. The curb profile features an 18-inch width with a 6-inch vertical face and a 1-inch top radius. Asphalt concrete or concrete paving abuts the gutter section. Scorelines are spaced at 10 feet on center unless otherwise noted.
