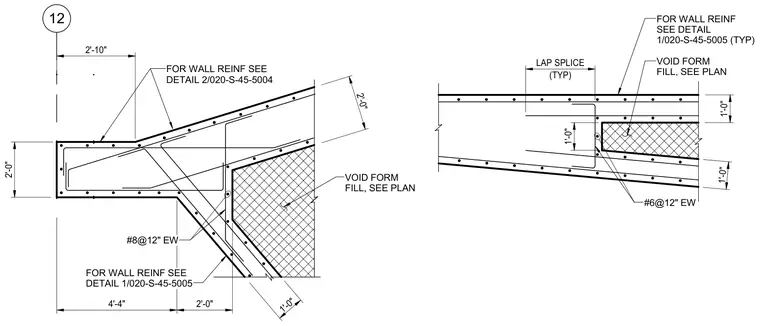

A concrete wall assembly incorporates a void form fill at designated transition zones with specified reinforcing steel. Number eight bars at twelve inches each way and number six bars at twelve inches each way provide reinforcement. Lap splices are detailed at typical locations with dimensions indicating wall thicknesses and offsets. Wall reinforcement details reference designated structural sheets.
12 2'-10" 4'-4" 2'-0" 2'-0" 1'-0" FOR WALL REINF SEE DETAIL 2/020-S-45-5004 VOID FORM FILL, SEE PLAN FOR WALL REINF SEE DETAIL 1/020-S-45-5005 #8@12" EW 2'-0" 1'-0" (TYP) LAP SPLICE 1'-0" 1'-0" FOR WALL REINF SEE DETAIL 1/020-S-45-5005 (TYP) VOID FORM FILL, SEE PLAN #6@12" EW
