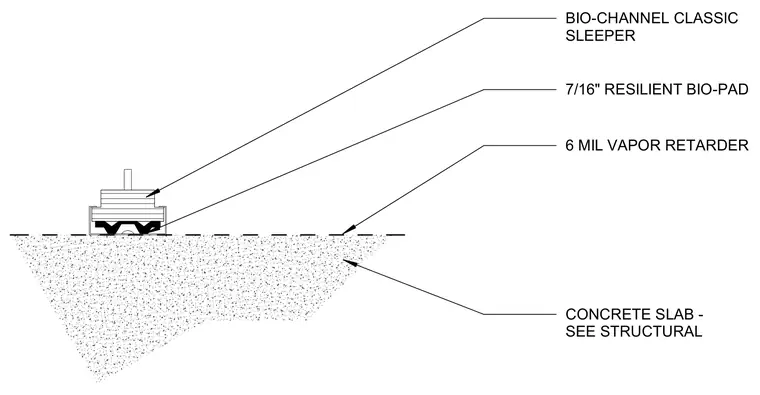

A bio-channel classic sleeper rests over a concrete slab with a six-mil vapor retarder placed directly beneath it. A seven-sixteenths-inch resilient bio-pad is integrated into the sleeper assembly to provide cushioning and shock absorption. The concrete slab is sized and specified per structural drawings.
7/16" RESILIENT BIO-PAD BIO-CHANNEL CLASSIC SLEEPER CONCRETE SLAB - SEE STRUCTURAL 6 MIL VAPOR RETARDER
