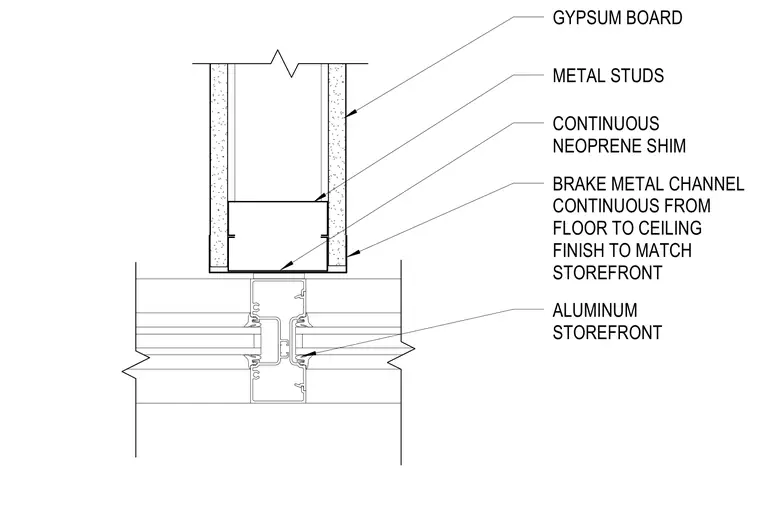

An aluminum storefront meets a partition wall constructed of metal studs faced with gypsum board. A continuous brake metal channel runs from the floor to the ceiling, finished to match the storefront profile. A continuous neoprene shim is placed within the assembly.
GYPSUM BOARD METAL STUDS CONTINUOUS NEOPRENE SHIM BRAKE METAL CHANNEL CONTINUOUS FROM FLOOR TO CEILING FINISH TO MATCH STOREFRONT ALUMINUM STOREFRONT
